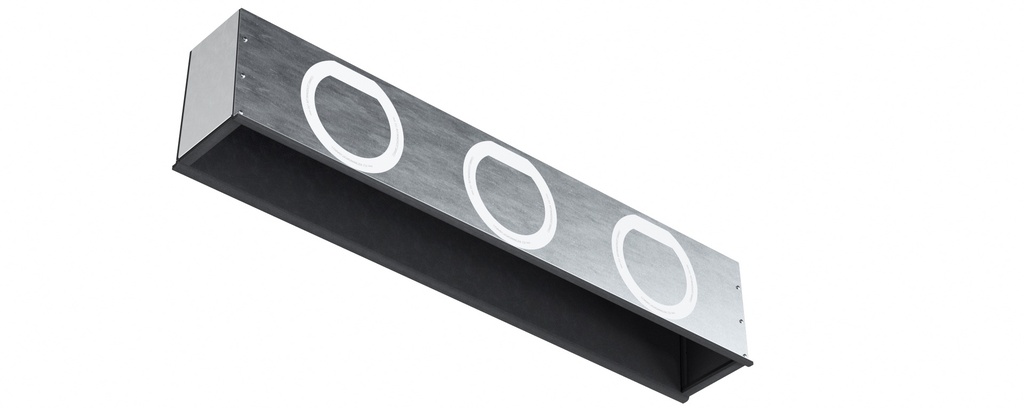

Our insulated Thermo Boxes come flat packed for ease of transit and storage on site.
Easily assembled by folding into shape and securing with a square SQ2 bit using the screws supplied, fixed into the pre-drilled holes.
The boxes come with pre-score knock-outs (125mm, 160mm and 200mm) that can be removed as required. The ducting spigot (by others) is then fixed to the outside of the box using suitable tech screws and/or sealant.

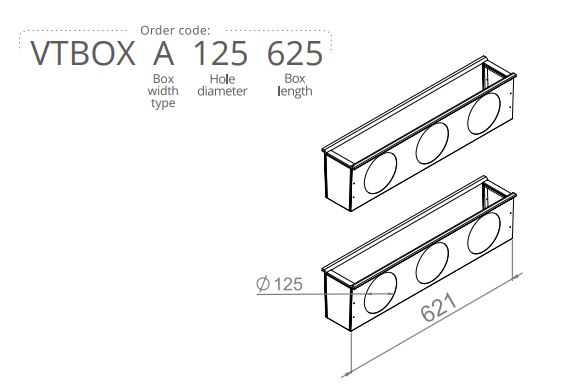

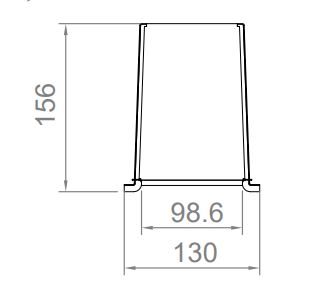

The VT Thermo Boxes come in three lengths to match the linear diffusers, and three width codes (A,B and C). Please ensure you match the width code on the box with the requirement from the slot diffuser.
|625 or 1000 or 1250
|125mm or 160mm or 200mm
|A or B or C
