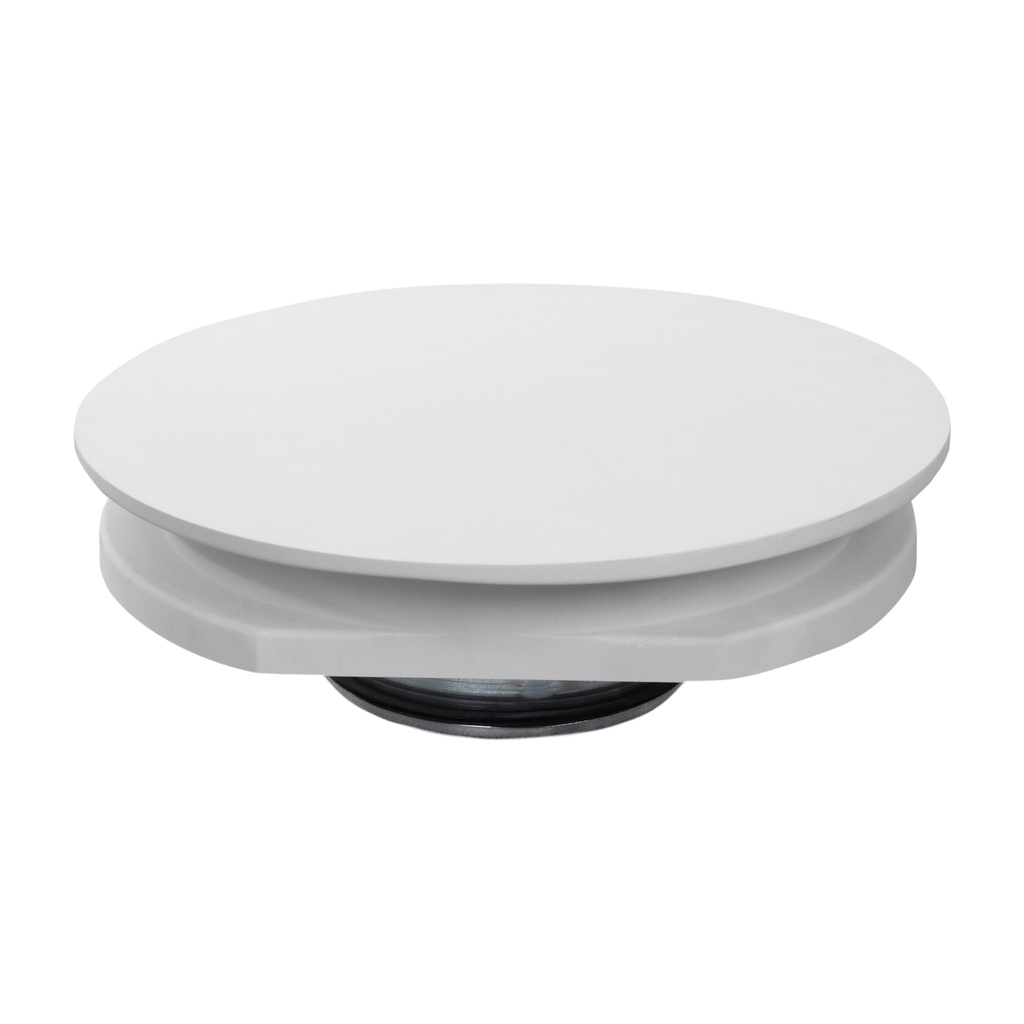

Side Round Diffuser

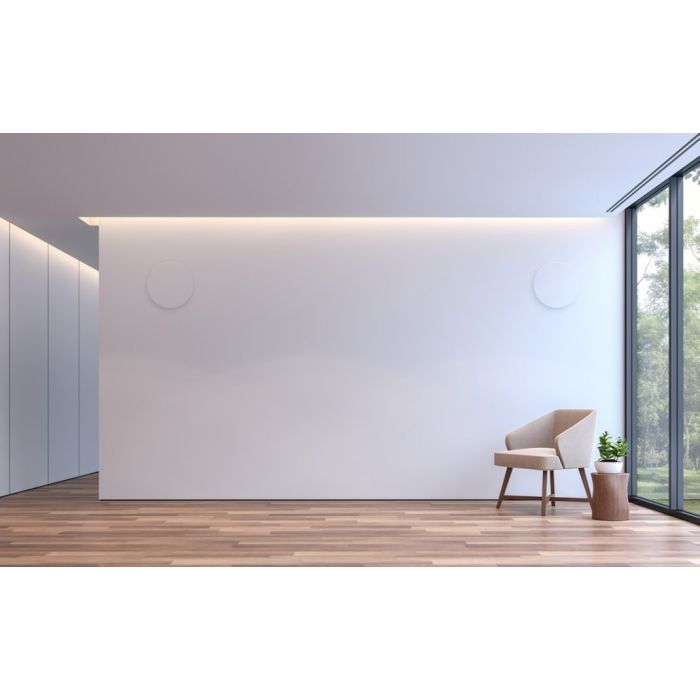

The Ventmann Side Diffuser is a high-quality, versatile air diffuser vent that uses the Coanda effect to create a smooth, even airflow. The diffuser is made of durable materials and features a sleek, modern design. It is easy to install and use, and it can be adjusted to provide a variety of airflow patterns. We might be biased, but we think this design works really well on walls where it provide a decorative air vent cover that looks stunning.
Features:
- Made of durable materials
- Sleek, modern design
- Easy to install and use
- Adjustable airflow patterns
- Can be installed on walls or ceilings
- Ideal for use in homes, offices, and commercial spaces
- Uses the Coanda effect to create a smooth, even airflow
- Adjustable gap height to change airflow speed
Benefits:
- Can help improve air quality
- Can help provide a comfortable and healthy environment
- Reduces noise levels
- Increases energy efficiency
- With upstream filtering, can help to reduce allergens and pollutants in the air

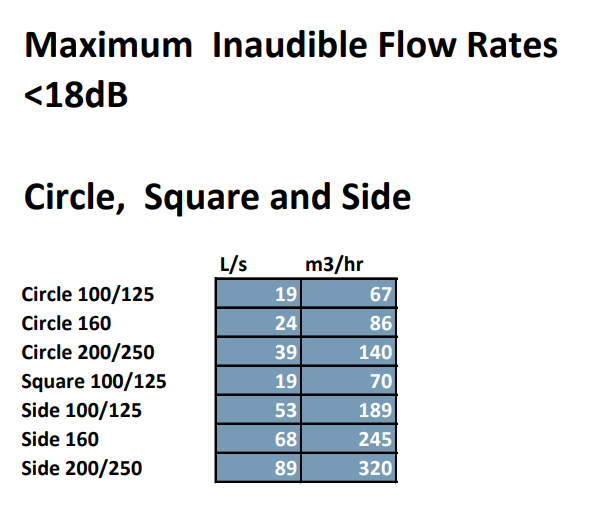

Inaudible Flow Rates - Side Round Diffusers
The following airflows give a noise level of 17dB. Installers often use 25dB as the level of inaudible noise. We use a lower figure to allow for other fixings such as dampers and other constrictions upstream of the diffuser and also to allow for some margin of error.
| Name | Model | Spigot Size | L/s | m3/hr |
| Circle "Side" Diffuser | Side Circle 100/125 | 100mm or 125mm | 53 | 189 |
| Circle "Side" Diffuser | Side Circle 160 | 160mm | 68 | 245 |
| Circle "Side" Diffuser | Side Circle 200/250 | 200mm or 250mm | 89 | 320 |
Specifications
| Spigot Size | 100mm or 125mm or 160mm or 200mm or 250mm |
