Ventmann
PCircle Diffuser
Perfecting airflow through innovative design, exceptional comfort, and style.
See the Difference
Seamless LINE Diffusers vs. Outdated
Ventmann PCircle 2 Slots Diffuser

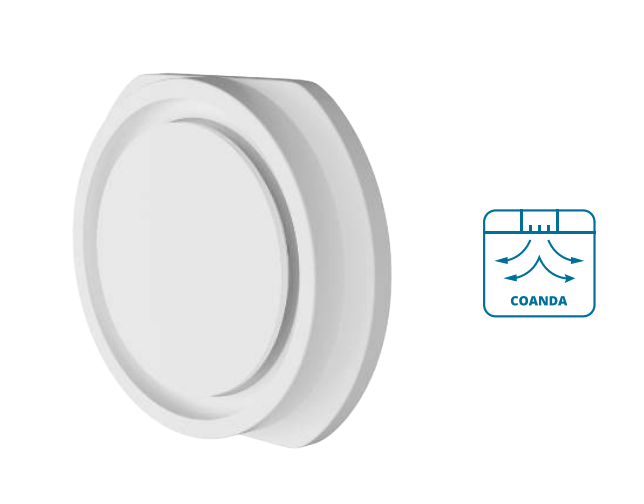

Coanda Effect
Ventmann’s PCircle Coanda delivers exceptional comfort through precise airflow, combining sustainability, performance, and design. Its unique form resolves the challenge of achieving the Coanda effect in supply air diffusers while meeting architects’ and designers’ aesthetic demands.
HOW COANDA EFFECT WORKS
INNOVATIVE CIRCULAR DESIGN
The PCIRCLE diffuser cap is equipped with our advanced Click system, designed for fast, precise, and hassle-free installation. This upgraded mechanism not only streamlines setup but also delivers environmental advantages and performs reliably across a broader temperature range than the older magnetic system. As the most adaptable unit in our collection, the PCIRCLE integrates effortlessly into a wide variety of interiors while ensuring superior air distribution. Like all frameless diffusers in our portfolio, it supports both air supply and extraction, enabling multiple installations in the same space without compromising on visual harmony.
Staying true to our sustainability values, the PCIRCLE Coanda is crafted from a proprietary gypsum-composite material. This eco-conscious choice significantly reduces embodied carbon compared to conventional aluminum or plastic options. The gypsum build also makes it plaster-and-paint friendly, blending seamlessly with surrounding surfaces. When paired with the frameless mounting system, the result is a discreet, near-invisible installation that delivers uncompromising performance.
To accommodate different project requirements, all standard PCIRCLE models are fully customizable:
– smallest standard diameters
– medium diameter option
– airflow up to 200 m³/h
– for increased air capacity
– largest standard diameter
– airflow up to 300 m³/h
– for maximum air delivery needs

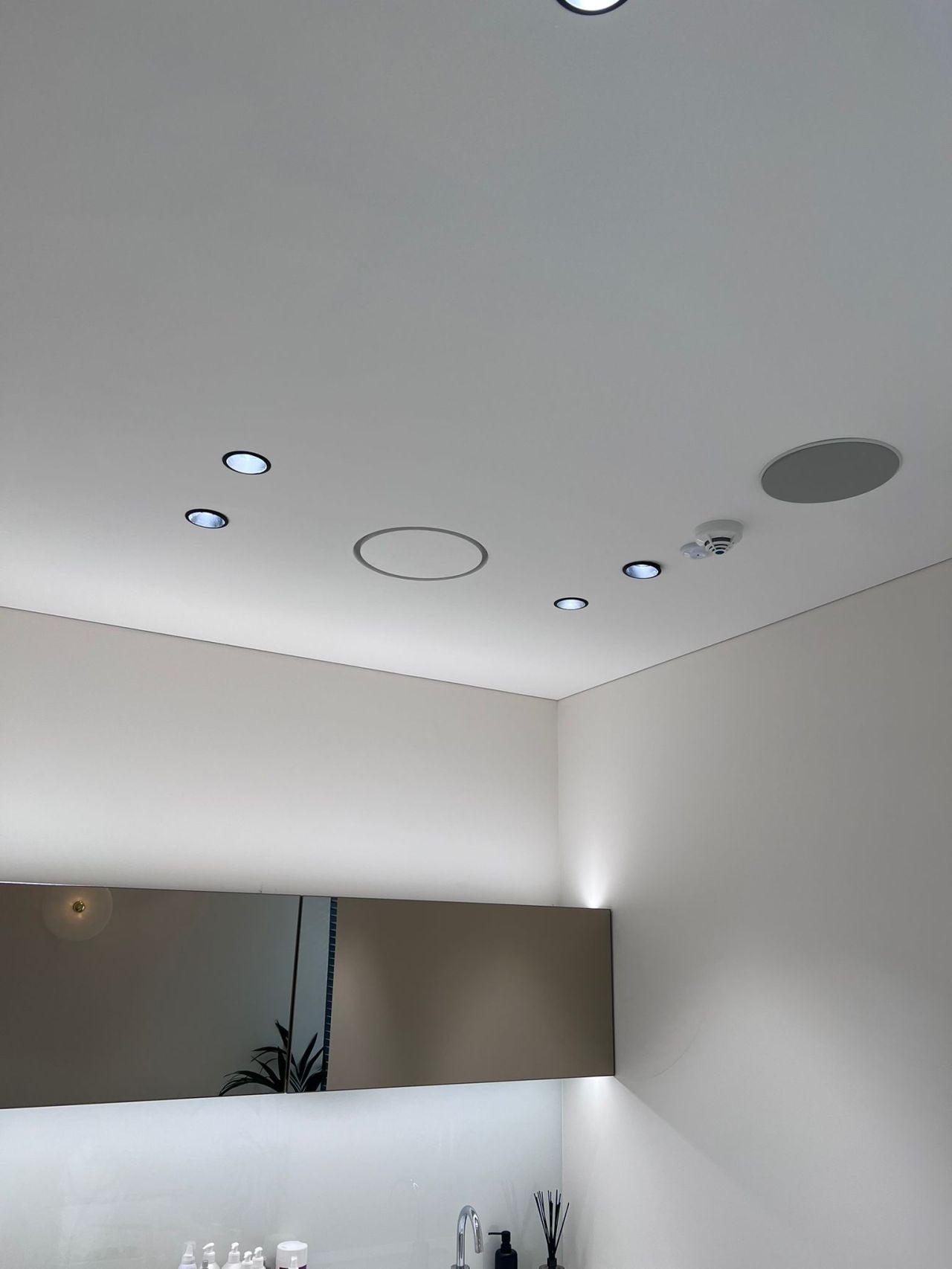

PCIRCLE PRODUCT GALLERY
VENTMANN Performance
Discover our Performance Line

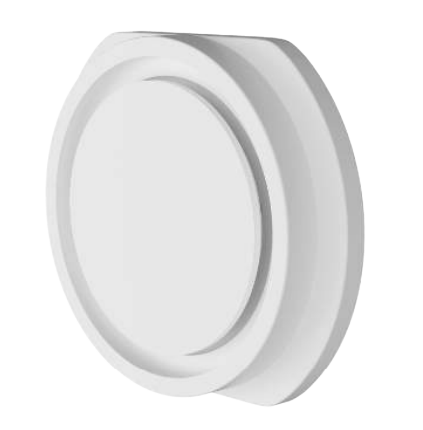

ABOUT PCIRCLE MODELS
- The Performance Circle diffuser is Ventmann’s most adaptable and best-selling model, offering a frameless design that integrates effortlessly into any interior style. Recognized with a 2023 Red Dot Design Award nomination, this model combines visual elegance with exceptional performance.
- Engineered to deliver optimal comfort, it features a precision airflow pattern that leverages the Coanda effect—solving the industry challenge of balancing complex airflow physics with the refined aesthetic standards of architects and designers.
Specifications:
- 1-slot or 2-slot configurations

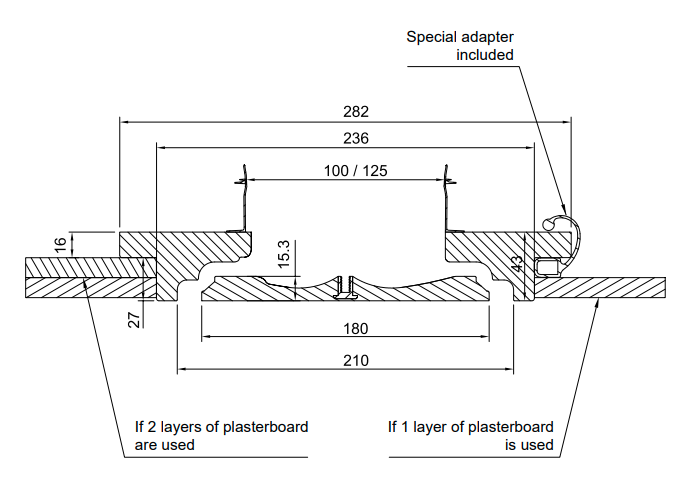

- 100 mm / 125 mm, 160 mm, and 200 mm

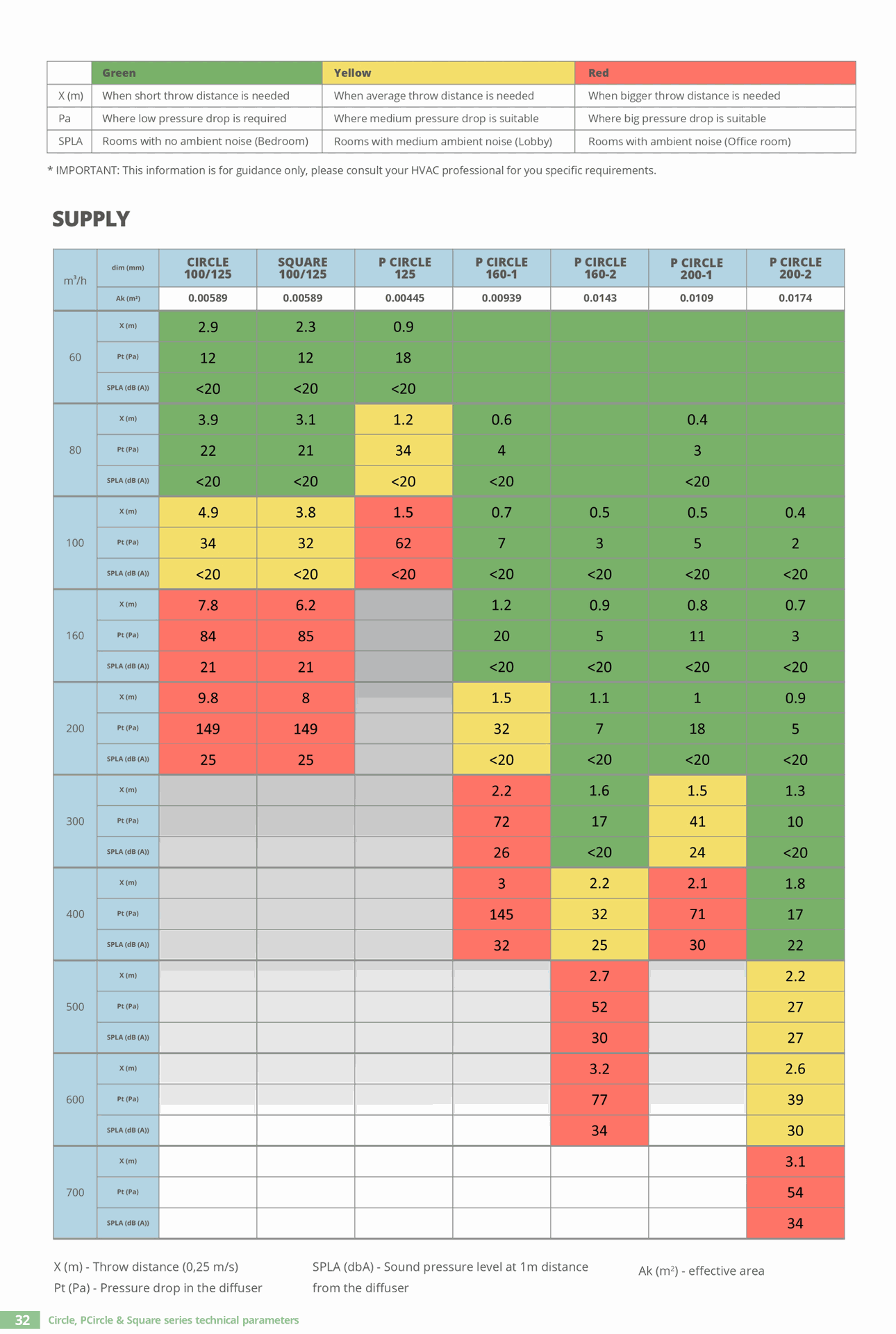

- Airflow Capacity:
- 160 mm (1-slot): up to 200 m³/h
- 200 mm (1-slot): up to 300 m³/h
Sustainable, high-performing, and architecturally versatile, the Performance Circle is the diffuser of choice for design-conscious HVAC projects.

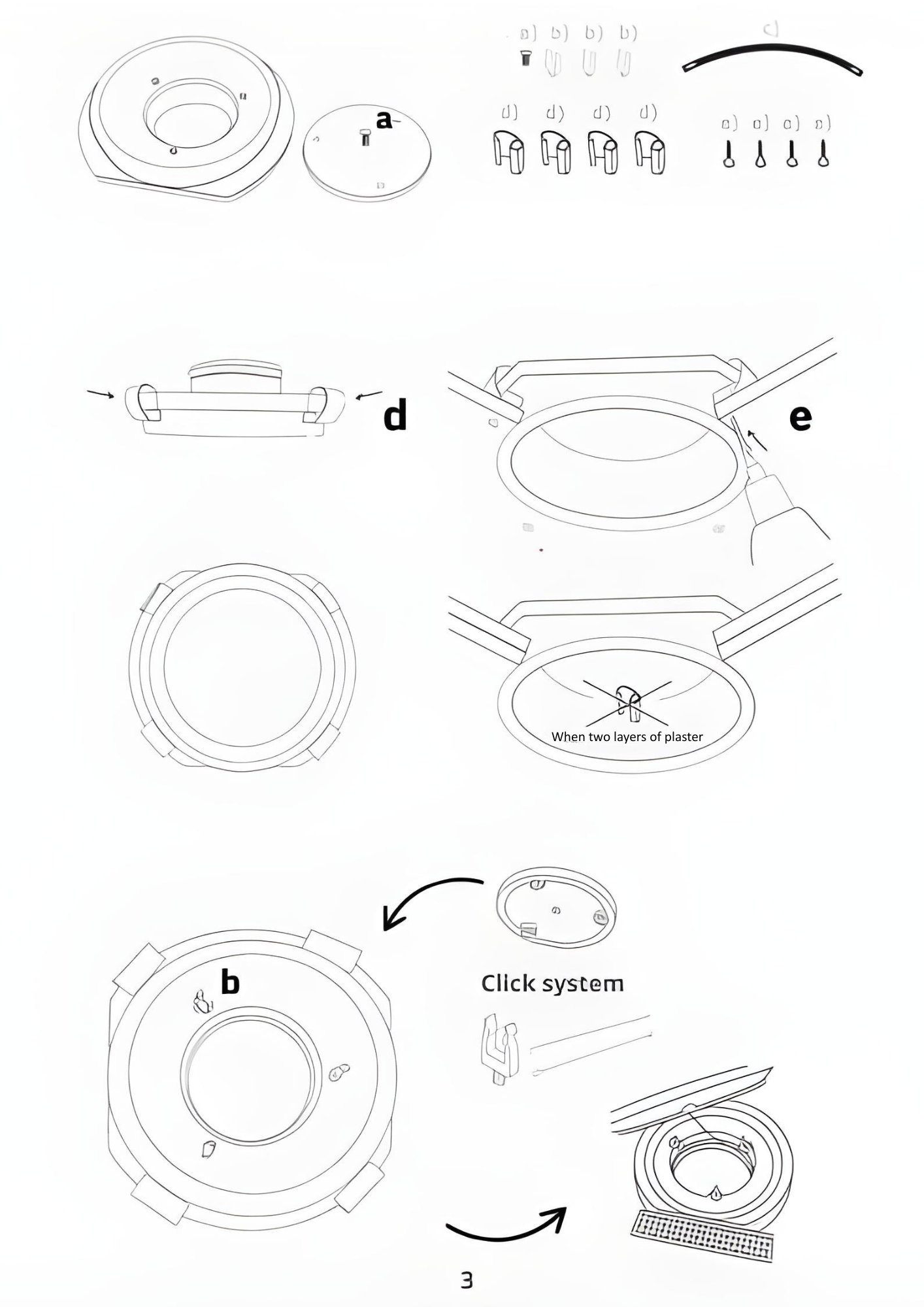

Mounting Manual & Click System
The Ventmann PCIRCLE Diffuser offers flexible installation with both manual and click mounting systems. Designed for ease and precision, these options ensure a secure fit, seamless alignment, and effortless maintenance — making installation quick, clean, and reliable.

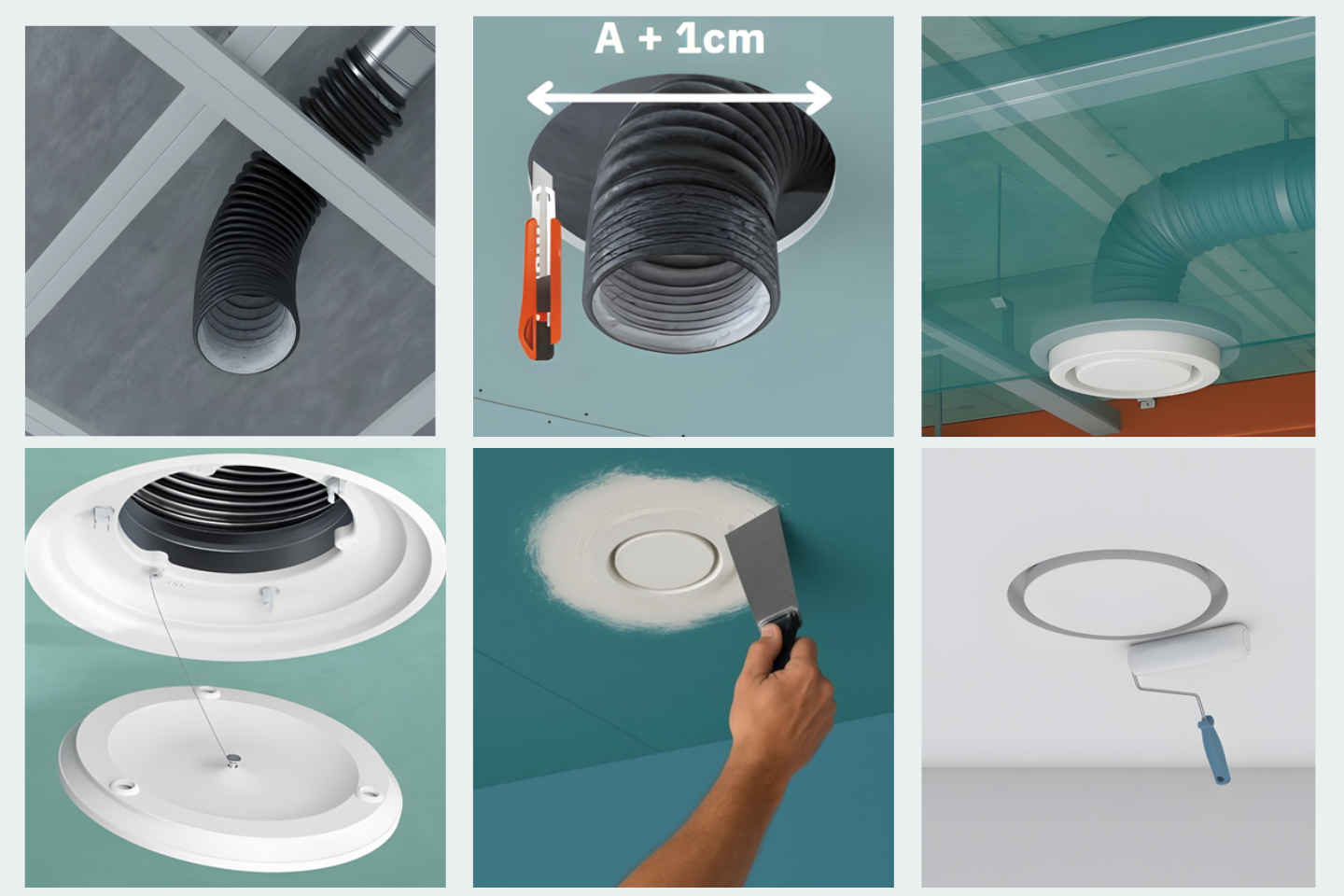

Step 1
PCIRCLE Diffuser Installation Instructions

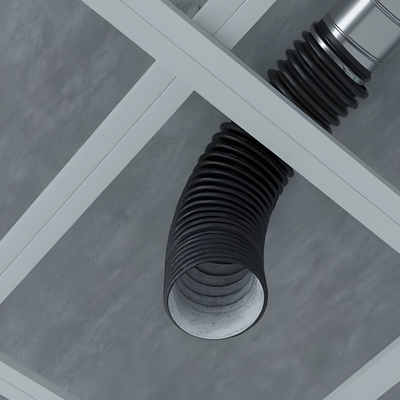

1. After the frame and duct are in place, simply install the plasterboard with the pre-cut hole
Step 2

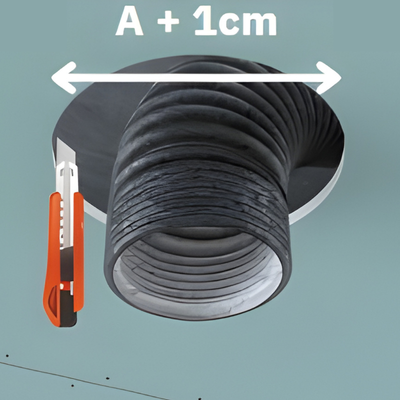

2. Carefully cut a circular opening in the gypsum board. Cuts A+1cm. area of the outer diameter of diffuser + 1 cm. This hole serves as the insertion point for the diffuser assembly.
Step 3

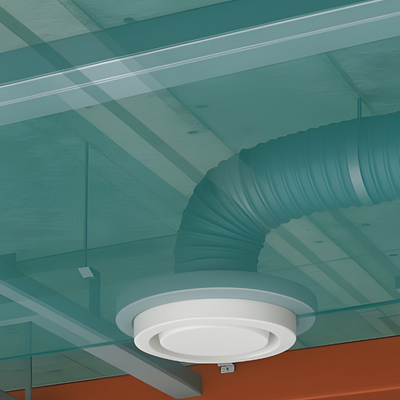

3. Slowly lower the diffuser into the opening until it sits precisely 0.1 mm to 1 mm below the ceiling surface.
Step 4

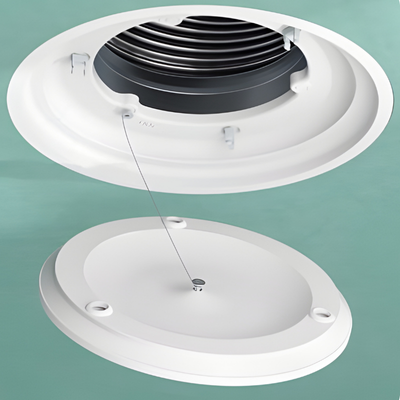

4. Install the click foam to designated area and connect wire to the center of the cap.
Step 5

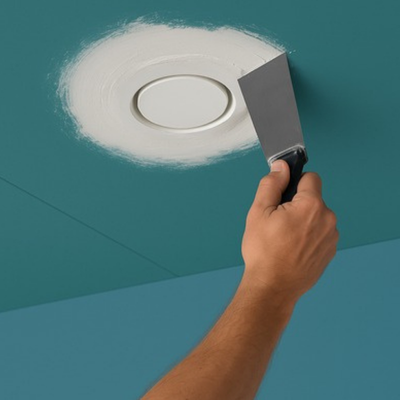

5. Plaster the area around the diffuser to cover all gaps and joints. Once dry, sand the plaster and diffuser edges to ensure a smooth, flat ceiling surface for a seamless finish.
Step 6

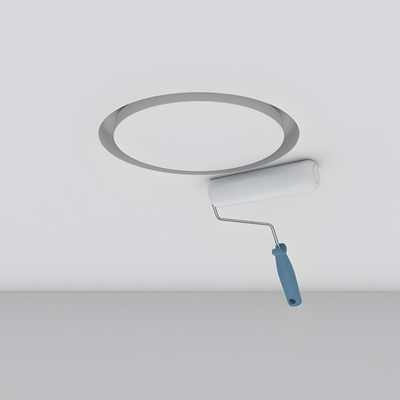

6. Use a paint roller to apply ceiling paint. This blends the edges with the surrounding surface, resulting in a professional and polished appearance.
Packaging Crush Test
Proven strength: Our packaging protects your diffuser – even after heavy impact.
