Plenum Boxes Installation
Ventmann Plenum Boxes are designed for quick and secure connection to our gypsum diffusers. They ensure balanced airflow, reduce noise, and simplify installation. With the right plenum box, your diffuser integrates seamlessly into ceilings or walls, delivering quiet and efficient performance.
LINE DIFFUSER + PLENUM BOX
Installation Note: Choosing the Right Plenum Box Type
When specifying and installing Ventmann Plenum Boxes, the orientation of the HVAC ductwork connection (where the air comes from) dictates the optimal box type for best acoustic and thermal performance.
Key Installation Observation:
- For "From Above" (Top Entry) Installations: Please select the Acoustic Plenum Box (GTG Series). This type is designed to primarily address and mitigate sound transmission from the ducting system into the occupied space, which is typically the priority for vertical (top) connections.
- For Lateral (Side Entry) Installations: Please select the "V" Shape Insulated Thermo Box (VTBOX Series). This type is insulated and features the specific "V" shaped air path required for optimal thermal regulation and air delivery when connecting from the side.

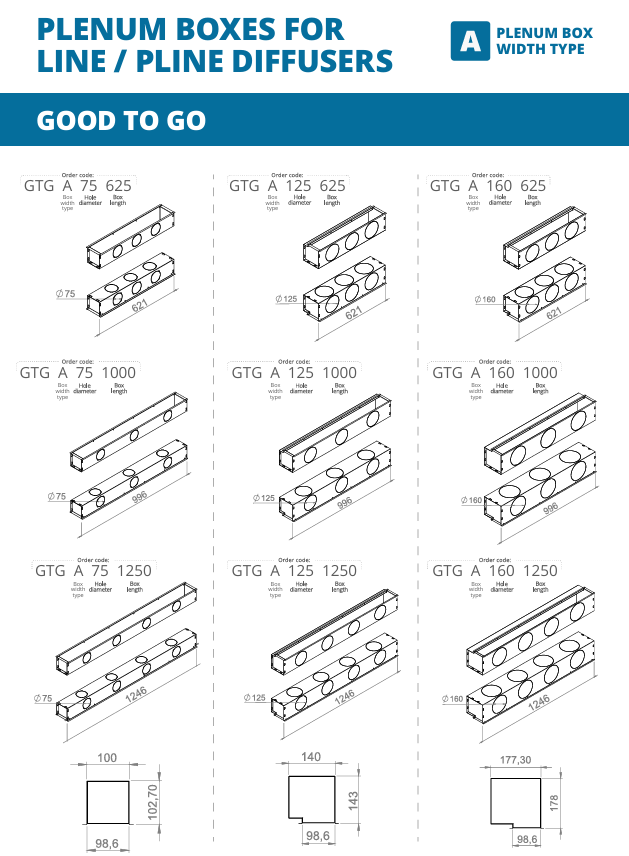

Ventmann Acoustic Plenum Boxes for Line / Pline Diffusers (Width Type 'A')
The Ventmann "Good to Go" (GTG) Type A Plenum Boxes are designed to optimize air distribution for line and pline diffusers. These standardized acoustic boxes ensure easy ordering and seamless integration with your HVAC system.
Key Product Details:
- Product Type: Plenum Boxes for Line / Pline Diffusers
- Series: GTG (Good to Go) Width Type 'A'
- Material: Acoustic construction (implied by the function of a plenum box in HVAC)
- Design Focus: Standardized sizes for quick specification and installation.
- Query successful
Standard Dimensions (Width Type 'A'):
- Spigot Diameter Ø 75 mm Box:Width: 98.6 mmHeight: 102.70 mm
- Spigot Diameter Ø 125 mm Box:Width: 98.6 mmHeight: 143 mm
- Spigot Diameter Ø 160 mm Box:Width: 98.6 mmHeight: 178 mm
Ordering Codes:
The simple ordering codes are structured as follows: GTG A [Diameter] [Length]
- Example 1: GTG A 75 625
- Example 2: GTG A 125 1000
- Example 3: GTG A 160 1250

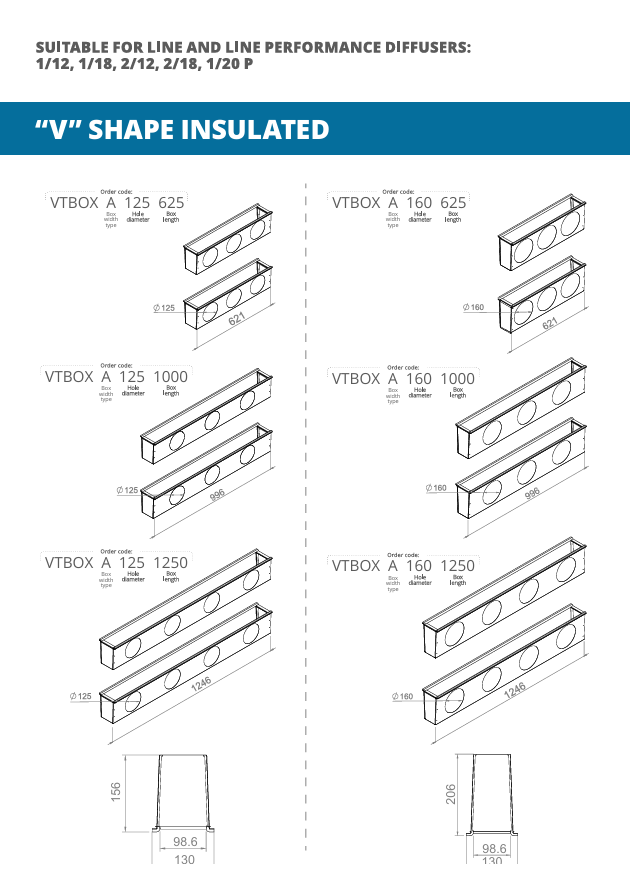

Ventmann "V" Shape Insulated Thermo Boxes (VTBOX A)
The Ventmann "V" Shape Insulated Thermo Boxes (VTBOX A) are specifically designed for use with Line and Line Performance Diffusers in the 1/12, 1/18, 2/12, 2/18, and 1/20 P configurations. These boxes feature an insulated construction to manage thermal performance and include a "V" shaped throat section for optimal air delivery to the diffuser slots.
Key Product Details:
- Product Name: "V" Shape Insulated Thermo Box
- Order Code Prefix: VTBOX A
- Compatibility: Suitable for Line and Line Performance Diffusers (specific models listed above).
- Feature: Insulated construction for thermal regulation (implied by "Thermo Box").
- Design: "V" Shape profile for optimized airflow to the diffuser.
Ordering Codes:
The ordering codes follow the structure: VTBOX A [Diameter] [Length]
- Example 1 (Ø 125 mm): VTBOX A 125 625
- Example 2 (Ø 160 mm): VTBOX A 160 1000
- Example 3 (Longest Option): VTBOX A 125 1250

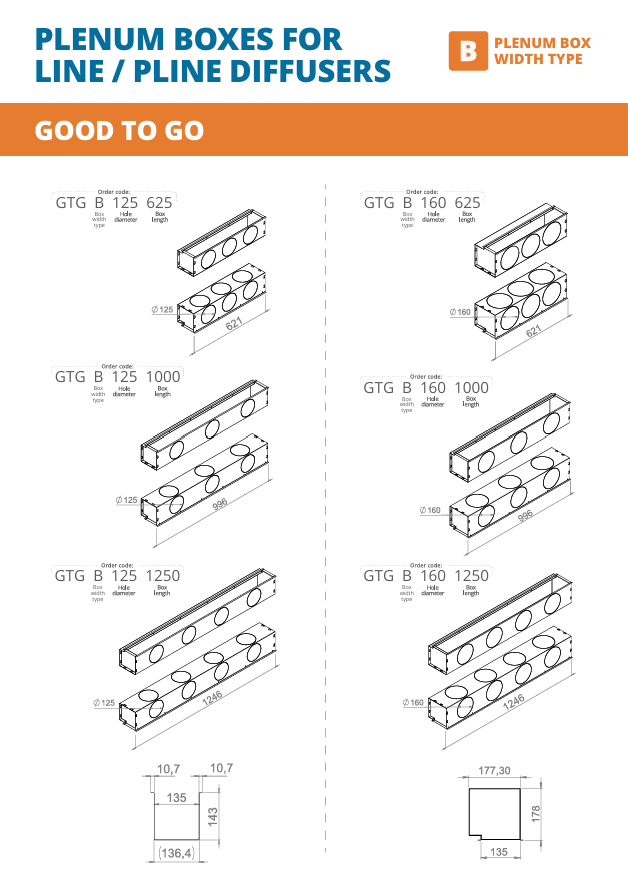

Ventmann Acoustic Plenum Boxes for Line / Pline Diffusers (Width Type 'B')
The Ventmann "Good to Go" (GTG) Type B Plenum Boxes offer a wider profile for optimized air distribution with line and pline diffusers. These standardized acoustic boxes ensure seamless air delivery and easy integration into the ceiling or wall structure.
Key Product Details:
- Product Type: Plenum Boxes for Line / Pline Diffusers
- Series: GTG (Good to Go) Width Type 'B'
- Design Focus: Wider box profile compared to Type 'A', accommodating two rows of circular spigot holes.
Standard Dimensions (Width Type 'B'):
- Spigot Diameter Ø 125 mm Box:Base Width: 136.4 mmTop Width (Spigot Side): 135 mmHeight: 143 mmInner Channel Widths: 10.7 mm (x2)
- Spigot Diameter Ø 160 mm Box:Top Width (Spigot Side): 177.30 mmHeight: 178 mmBase Width: 135 mm
Ordering Codes:
The simple ordering codes are structured as follows: GTG B [Diameter] [Length]
- Example 1: GTG B 125 625
- Example 2: GTG B 160 1000
- Example 3: GTG B 125 1250

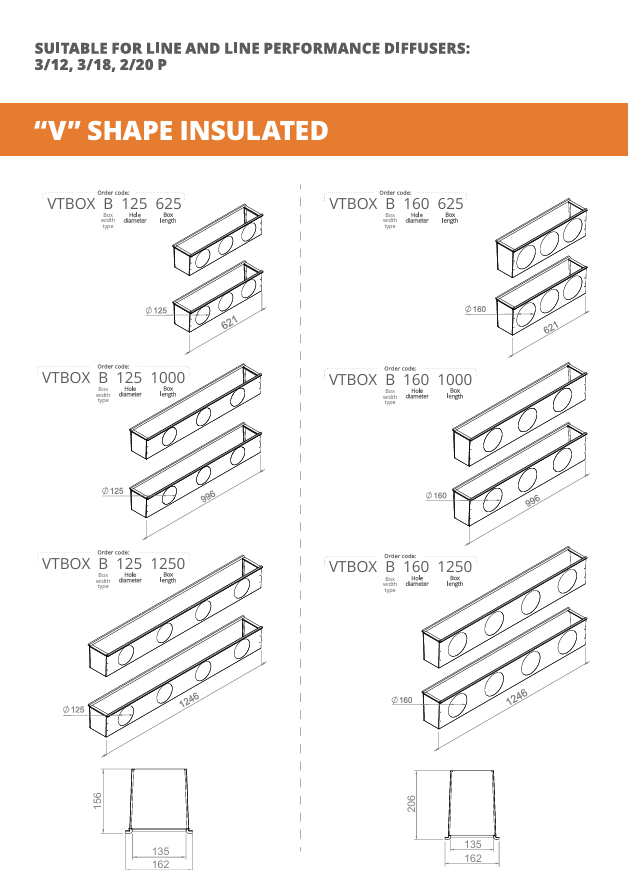

Ventmann "V" Shape Insulated Thermo Boxes (VTBOX B)
The Ventmann "V" Shape Insulated Thermo Boxes (VTBOX B) are specifically designed for use with Line and Line Performance Diffusers in the wider 3/12, 3/18, and 2/20 P configurations. These boxes feature an insulated construction for thermal performance and a wider base profile, along with a "V" shaped throat section for optimized air delivery.
Key Product Details:
- Product Name: "V" Shape Insulated Thermo Box
- Order Code Prefix: VTBOX B
- Compatibility: Suitable for Line and Line Performance Diffusers (specific models listed above).
- Feature: Insulated construction for thermal regulation (implied by "Thermo Box").
- Design: Wide "V" Shape profile with two rows of spigot holes for high-capacity applications.
Ordering Codes:
The ordering codes follow the structure: VTBOX B [Diameter] [Length]
- Example 1 (Ø 125 mm): VTBOX B 125 625
- Example 2 (Ø 160 mm): VTBOX B 160 1000
- Example 3 (Longest Option): VTBOX B 125 1250

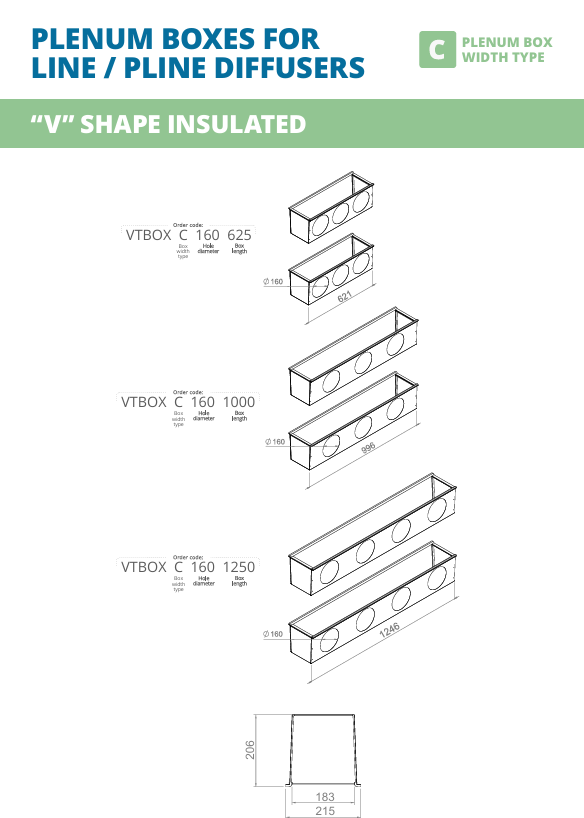

Ventmann "V" Shape Insulated Thermo Boxes (VTBOX C)
The Ventmann "V" Shape Insulated Thermo Boxes (VTBOX C) are part of the insulated line, featuring the widest profile in the VTBOX range shown, designed for high-capacity air distribution with line and pline diffusers. These boxes include insulated construction and a "V" shaped throat section for optimized thermal and airflow performance.
Key Product Details:
- Product Name: "V" Shape Insulated Thermo Box
- Order Code Prefix: VTBOX C
- Feature: Insulated construction for thermal regulation (implied by "Thermo Box").
- Design: Widest "V" Shape profile shown, with two rows of spigot holes.
- Spigot Diameter: Exclusively available with Ø 160 mm spigot holes.
Ordering Codes:
The ordering codes follow the structure: VTBOX C 160 [Length]
- Example 1: VTBOX C 160 625
- Example 2: VTBOX C 160 1000
- Example 3: VTBOX C 160 1250
Ventmann "V" Shape Insulated Thermo Boxes (VTBOX C) - High Capacity
This configuration of the Ventmann "V" Shape Insulated Thermo Boxes (VTBOX C) is specifically engineered for the highest capacity air distribution, suitable for Line and Line Performance Diffusers in the 3/20 P configuration. These boxes feature superior height and a wider profile, along with insulated construction and the "V" shaped throat section for thermal and high-volume airflow performance.
Key Product Details:
- Product Name: "V" Shape Insulated Thermo Box (High-Capacity)
- Order Code Prefix: VTBOX C
- Compatibility: Suitable for Line and Line Performance Diffusers (specifically 3/20 P).
- Feature: Insulated construction for thermal regulation (implied by "Thermo Box").
- Design: Widest and tallest profile shown, with two rows of spigot holes.
- Spigot Diameter: Exclusively available with Ø 200 mm spigot holes.
Ordering Codes:
The ordering codes follow the structure: VTBOX C 200 [Length]
- Example 1: VTBOX C 200 625
- Example 2: VTBOX C 200 1000
- Example 3: VTBOX C 200 1250
